| Monitoring modes Time domain Frequency domain |
RMS and peak value FFT |
RMS and peak-to-peak value – |
| Monitored variables Vibration acceleration Vibration speed Vibration displacement |
yes yes – |
yes yes yes |
| Frequency ranges Vibration acceleration Vibration velocity Vibration displacement |
0.3 Hz .. 10 kHz 2 .. 1000 Hz – |
1 Hz .. 50 kHz 3 .. 1000 Hz 3 .. 200 Hz |
| high pass filter | 0.3/5/10/20/50/100/200/500/1000Hz; IIR; 2 pin | High-pass plug-in module FB3-… (2 .. 1000 Hz available) |
| low pass filter | 0.1/0.2/0.5/1/2/5/10kHz; IIR; 2 pin | Low-pass plug-in module FB2-… (0.1 .. 50 kHz available) |
| exits | Broadband (AC); current loop; 2 relays | Broadband (AC); filtered (AC); effective value (DC); peak-to-peak (DC); current loop; 1 relay |
| digital interfaces | USB (front); RS-485 (rear) | – |
| power supply | 8 .. 30 VDC | 12 .. 28 VDC |
| Data sheet operating instructions USB parameterization and measurement program firmware update | Data sheet data sheet filter modules operating instructions |

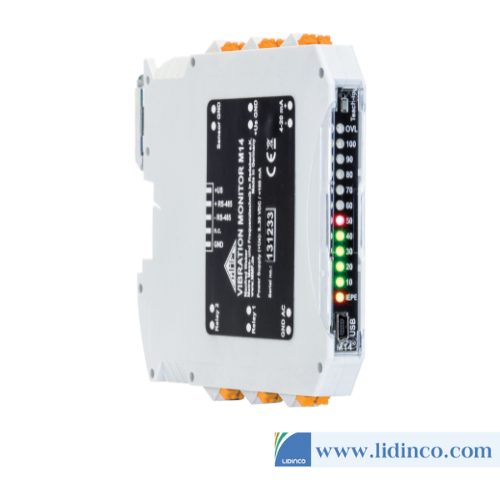

Máy Giám Sát Độ Rung MMF M14
Giá: Liên hệ
