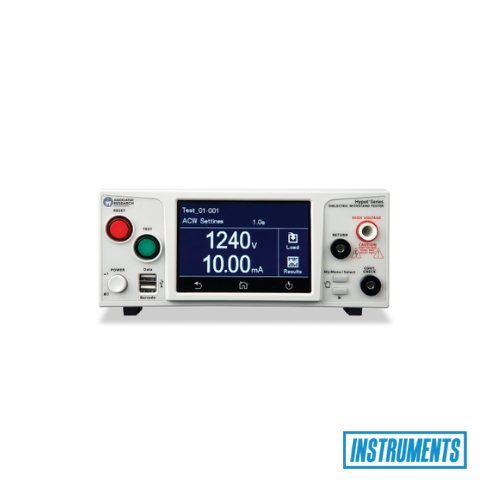

Hypot®Series Hipot Tester



As Compact and Versatile As Ever

The Hypot® Series Dielectric Withstand Tester provides a straightforward solution for AC Hipot, DC Hipot, or Insulation Resistance testing. This line of electrical safety testers features industry-leading innovations for superior test results. Its built-in ARC detection, utilized by top-tier manufacturers, detects abnormal circuit shorts, preventing dielectric breakdowns and enhancing quality assurance. The ramp-high and charge-low functions eliminate errors from current overshoots and faulty connections, further increasing efficiency. Further, by interconnect with HYAMP® to set a complete safety compliance system.

Documentation & Video

Thinner and Lighter

Crafted to the size of a piece of A4 paper and weighing only 5.5kg, the tester is designed to be extremely compact, making it ideal for any spatially confined environment.

3-in-1 System

Fully integrated AC/DC withstand, and insulation resistance testing features into a single solution. Capable of performing multiple combinational testing features into a one-step testing function to increase the testing efficiency.

Accuracy that Eliminate Misjudgments

Ramp-high and charge-low functions increase testing efficiency by eliminating judgment errors — common during current overshoots and faulty connections from the DUT’s test results.

Fast Discharge, Faster to Safety

The Hypot series’ patented fast-discharge helps the DUT to quickly and efficiently release excess electricity within 50ms, ensuring maximum operator safety.

Your Quality Assurance

Get peak quality assurance for your products with ARC detection capability and eliminate poor gap spacing that may be damaged during shipping and cause dielectric breakdowns.

For more details download the full documentation here:

3805 3855 3865 3870
ACW 5kVAC/20mA
DCW – 6kVDC/7.5mA
IR –  1kVdc/50GΩ –  1kVdc/50GΩ
Dimension (WxHxD, mm) 215×88.1×300
Weight 5.46kg

Hypot® 3855

5 kV @ 20 mA AC Hipot with IR Tester, CE listed

The 3855 raises the bar for safety and efficiency in production line Hipot Testers. If your application requires AC test, Ground Continuity, and Insulation resistance testing capabilities the 3855 is the electrical safety tester for you.



Safety Features: Safety Interlock, SmartGFI®, Security Access, PPE Compatibility
Productivity: Programmable Memory, Arc Detection, Single Step, FailCHEK®, Cal Alert®, Voltage on the Fly, I-Max
Warranty: 5 Year Warranty
Dimensions (W x H x D): 8.5″ x 3.5″ x 11.9″ (215 x 88.1 x 300 mm)
Weight: 12 lbs (5.46 kg)
