Snap Button Tester
Product Description：
Button Snap Pull Tester is used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also it is applied for compression and tensile testing of small samples(special attachments are available).

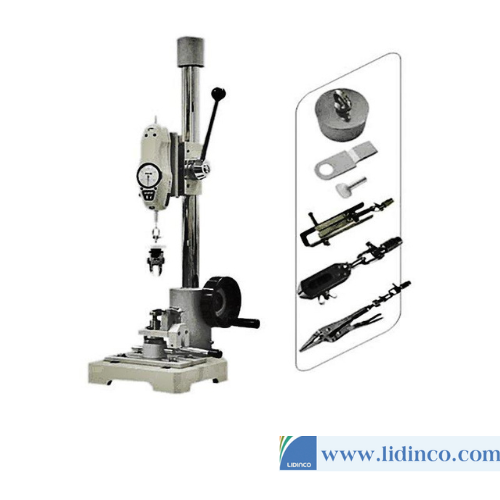

Snap tester consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.
By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, four Hole Buttons & Garments Accessories such as Zippers, Bows, Applique, Toggles, Hooks/Bars, and D-Rings among others.
Standard Features：
| Load capacity | 50KG |
| Load accuracy | ±0.2% of full scale |
| Readability | 0.1N |
| Diameter of pressing ring | 15mm , 35mm |
| Instrument Dimension | (L×W×H)240×290×750mm |
| Instrument Weight | 40kg |
| Design Standard | ASTM D 4846, EN71 |
Features：
- The pointer meter made by IMADATM in Japan, with high accuracy.
- Grasp clamp made by stainless steel, durable and easy to operate.
- Many grasps clamp attached, can perform many snap strength tests.
- The structure special designed, and the test result with high accuracy.
