| Features | |
| Fiber-Reinforced Plastic (FRP) body cover
FRP body cover design is easier for maintenance and endurable. |
Platen speed and direction adjustable
Adjust the platen speed and rotational direction based on the sample materials. |
| Intuitive display design
Intuitive display design is easy to learn for operators. |
High effective brushless motor
Low rotational speed and high torque ensure the precision of grinding/ polishing, and also has longer lifespan. |
| Multiple choices of platens are suitable for various consumables
Platen can be rapidly replaced. According to the feature of the consumables, such as PSA back SiC papers, plain back SiC papers, diamond discs, and polishing cloths, to apply with suitable platens.
|
Expand platen is for a wider size sample grinding/ polishing
Different from the restriction of 8” and 10” platens, platen size of Ø300mm (12”) increases the sample size for grinding or polishing. Irregular shape sample grinding/ polishing Manual operation without the restriction of sample’s shape. |
| Compatible with dispenser (Option)
Opting for a dispenser can distribute diamond suspension or aluminum suspension automatically. |
Flexible operation with dual platens (E-FR)
Dual platens increase the efficiency of the application for platens. Grinding and polishing can be able to process at the same time. |
Thông số kĩ thuật

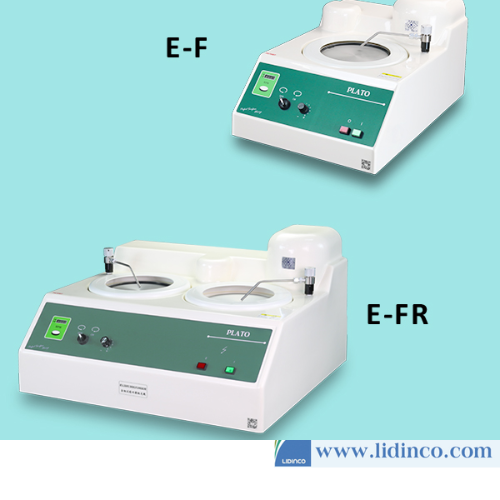

| Model | E-F | E-FR |
| Platen Size (mm) | Ø304.8 (12″) | Ø304.8 (12″) |
| Platen Quantity | 1 | 2 |
| Grinding Method | Manual | Manual |
| Noise Level (dB) | 50~55 | 54~60 |
| Platen Motor Power (W) | 370 | 370 |
| Platen Rotational Speed (rpm) | 50~600 (Special rotational speed can be customized) | |
| Machine Dimension WxDxH (mm) | 500x800x500 | 850x750x460 |
| Machine Weight (kg) | 63 | 100 |
| Water Inlet Pipe Size (mm) | 10mm pipes
(Inlet Ø10－Outlet Ø15) |
10mm pipes
(Inlet Ø10－Outlet Ø15) |
| Water Outlet Pipe Size (mm) | 26mm pipes
(Inlet Ø26－Outlet Ø30) |
32mm pipes
(Inlet Ø32－Outlet Ø36) |
| Power Supply (V) | AC110/220 1Ø | AC110/220 1Ø |
| Accessories | Grinding Platen 1pc, O-ring 1pc, Anti-Splash Cover 1pcs, Silicon Carbide Paper 8pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, 500g Dispenser 1pc | Grinding Platen 1pc, O-ring 1pc, Polishing Platen 1pc, Anti-Splash Cover 2pcs, Silicon Carbide Paper 8pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, PU Pipe 6m, 500g Dispenser 1pc |
| Option | P20F0027 Dispenser Set- single bottle, P20F0028 Dispenser Set- four bottles, PA0108-3 8” Anti-Splash Cover (Standard), PA0108-4 10” Anti-Splash Cover (Standard) | |
