| Features | ||
| Superior industrial plastic body
Exquisite Appearance Streamline appearance design and glossy film surface finishing makes the mechanical appearance artistic and exquisite. |
||
|
Modular design The combined control box can be fixed behind the machine or be placed next to the machine with quick-change design, which is easy to clean and can maximize the space. |
Platen speed and direction adjustable Adjust the platen speed and rotational direction based on the sample materials. |
|
|
Low speed grinding and polishing function Rotational speed can be lowered to 10 rpm. With external dispenser (optional), it meets the requirement of long-time polishing process without deformation. |

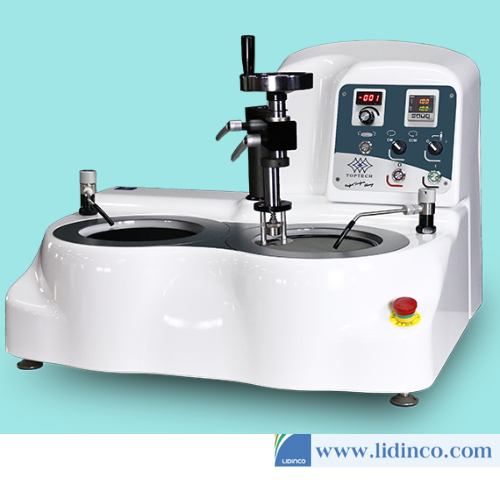

Versatile M1 sample-fix arm Grinding by assistant handle Z-axis adjustable (with fixed design) Horizontally moveable (with fixed design) Rapid changing design for sample holders
|
 |
|
Various anti-splash application Various anti-splash covers can be applied based on the method of polishing process. |
||
|
Automatic drying function The automatic drying function makes the cleaning process faster. Also, avoid the crossing contamination during the operating process. |
||
|
Extracted water hose Clean the machine conveniently
|
Various choices of platen Platen size of 8” and 10”are suitable for any consumables application.
|
|
Thông số kĩ thuật
| Model | P20G-2-M1 | P25G-2-M1 |
| Platen Size (mm) | Ø203.2 (8”) | Ø254 (10”) |
| Platen Quantity | 2 | |
| Grinding Method | Manual (Auxiliary Sample Holder) | |
| Grinding Quantity | 1 | |
| Sample Size (mm) | Ø25/Ø32/Ø40/Ø50 (Special sample size can be customized) | |
| Platen Motor Power (W) | 400 | |
| Platen Rotational Speed (rpm) | 1~600 (Effective Rotational Speed 10~600) | |
| Machine Dimension
WxDxH (mm) |
880x650x600 | |
| Machine Weight (kg) AC110V 1Ø | 86 | 88 |
| Machine Weight (kg) AC220V 1Ø | 76 | 78 |
| Standard Accessories | Grinding Platen 1 pc, O-Ring 1 pc, Polishing Platen 1 pc, Anti-Splash Cover 4 pcs, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc | |
| Option | P20F0027 Dispenser Set for One Bottle, P20F0028 Dispenser Set for Four Bottles, PA0108-1 8” Anti-Splash Cover (Manual), PA0108 10” Anti-Splash Cover (Manual), PA0108-3 8” Anti-Splash Cover (Auto), PA0108-4 10” Anti-Splash Cover (Auto), PA0108-2 Anti-Splash Cover (Full-Cover) | |
