| Features | |||
| Exchangeable grinding head for A type, B type, or C type
Exchangeable grinding head can be selected based on the demand of the sample preparation. This has increased the varsity selections for the sample preparation. |
|||
| Individual pressure (A type and B type)
The individual pressure force is 1.4~5kg, which can be adjusted according to the sample of material.
|
Central pressure (C type)
The central pressure force is 3~5kg, which can be adjusted according to the sample of material. |
||
|
A type Individual force |
B type
Individual force with calibration |
C type Central force with calibration |
|
|
Fiber-reinforced plastic (FRP) body cover The FRP body cover design is easier for maintenance and endurable. |
Platen speed and direction adjustable
Adjust the platen speed and rotational direction based on the sample materials. |
||
| Intuitive display design
Intuitive display design is easy to learn for operators. |
High effective brushless motor
Low rotational speed and high torque ensures the precision of grinding/ polishing, and also has longer lifespan.
|
||
| Expand platen is for a wider size sample grinding/ polishing
Different from the restriction of 8” and 10” platens, platen size of Ø300mm (12”) increases the sample size for grinding or polishing.
Compatible with dispenser (Option) Opting for a dispenser can distribute diamond suspension or aluminum suspension automatically.
|
Multiple choices of platens are suitable for various consumables
Platen can be rapidly replaced. According to the feature of the consumables, such as PSA back SiC papers, plain back SiC papers, diamond discs, and polishing cloths, to apply with suitable platens.
Flexible operation with dual platens (FRS-ABC) Dual platens increase the efficiency of the application for platens. Grinding and polishing can be able to process at the same time. |
||
Thông số kĩ thuật

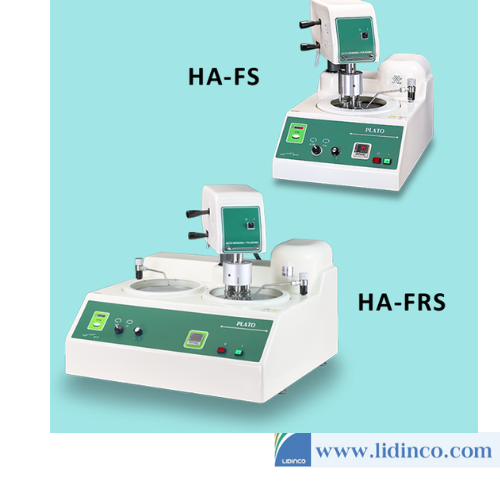

| Model | HA-FS-A3 | HA-FS-B3 | HA-FS-C3 |
| HA-FS-A5 | HA-FS-B5 | HA-FS-C4 | |
| Platen Size (mm) | Ø304.8 (12”) | ||
| Platen Quantity | 1 | ||
| Grinding Method | Individual Force | Individual Force with Individual Calibration | Central Force with
Central Calibration |
| Noise Level (dB) | 52~57 | ||
| Sample Quantity (pcs) | 3 or 5 | 3 or 4 | |
| Sample Size (mm) | Ø25/Ø32/Ø40
(Special sample size can be customized) |
Ø15~Ø32
Ø20~Ø40 |
|
| Force (kg) | 1.4~5 | 3~5 | |
| Platen Motor Power (W) | 370 | ||
| Platen Rotational Speed (rpm) | 50~600
(Special rotational speed can be customized) |
||
| Head Motor Power (W) | 25 | ||
| Head Rotational Speed (rpm) | 60 | ||
| Timer (min:s) | Max. 99:59 | ||
| Machine Dimension WxDxH (mm) | 500x800x670 | ||
| Machine Weight (kg) | 76 | ||
| Water Inlet Pipe Size (mm) | 10mm pipes
(Inlet Ø10－Outlet Ø15) |
||
| Water Outlet Pipe Size (mm) | 26mm pipes
(Inlet Ø26－Outlet Ø30) |
||
| Power Supply (V) | AC 110/220 1Ø | ||
| Accessories | Grinding Platen 1pc, O-ring 1pc, Anti-Splash Cover 1pcs, Silicon Carbide Paper 8pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, 500g Dispenser 1pc, Leveler 1pc (C Type) | ||
| Option | P20F0027 Dispenser Set- single bottle, P20F0028 Dispenser Set- four bottles, PA0108-3 8” Anti-Splash Cover (Standard), PA0108-4 10” Anti-Splash Cover (Standard) | ||
