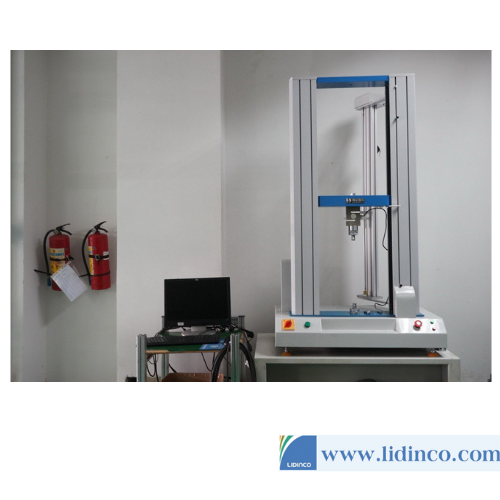

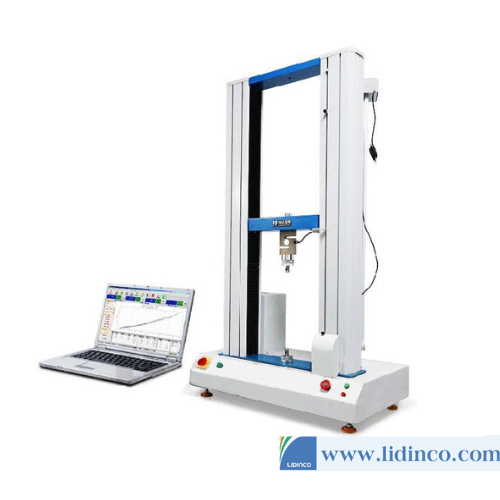

Stiffness bending test machine
Product description:
stiffness bending test machine is mainly for bending strength, tear resistance, peel strength, shear force ,etc.
Standard Features
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1100mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.5% |
| Test speed | 0.01~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Features
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

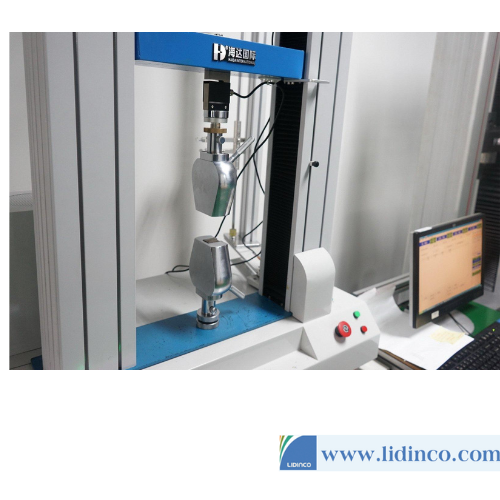

4. stiffness bending test machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
Applications Testing
- 1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
- 2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
- 3. Deformation under defined load: Test deformation under defined load of tested sample
- 4. Load under defined deformation: Test load under defined deformation of tested sample
- 5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Benefit Features
- 1.TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
- 2.High-tech, low noise
- 3.Humanized industrial design, easy to place and transport
- 4.The world famous brand core precision components
- 5.Security protection system
- 6.Valid test trip length (modifiable)
Standard
the standard of stiffness bending test machine including but not limited :
GB/T 2653-2008 ,ASTM E290-09、GB/T 232-1999、ISO 7438-2005、 JIS Z 2248-2006、EN ISO 7438-2005
