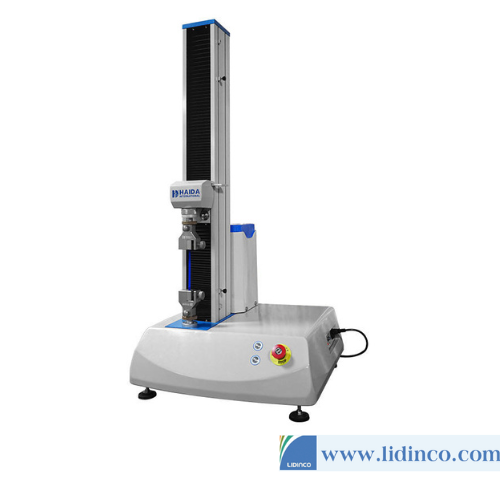

Tensile strength testing machine
Description:
Tensile strength testing machine is used to test the tensile strength, tearing force, peeling and adhesive force- the physical property of strength resistance with different clamps for paper, tape, film and other kind of materials.
This Tensile strength testing machine uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.
Applications:
- Deformation under defined load: Test deformation under defined load of tested sample
- Load under defined deformation: Test load under defined deformation of tested sample
- Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
- This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
Design Standard(inculding but not limited to…):
- Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
- Bend Test ISO-178 / ASTM D 790
- Tear Test：ASTM D 624
- Peel Test : ASTM D 3330
- Compression Test : ASTM D 659
- others…
Specification:
| Item | Description |
| Max. Force | 200 kg (2KN) |
| Load cell | China brand load cell |
| Control system | PC with windows 7 system |
| Motor | adjustable-speed motor with reduction box, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 900mm including fixture |
| Load cell Resolution | 1/100,000 |
| Load Precision | ≤1% |
| Test speed | 50~300mm/min (adjustable by rotary knob) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
| (universal testing machine)Related Products: | |
| HD-609/604 | 2000 kg (20KN)Max. Force / for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials |
| HD-611 | 10T (100KN) Max. Force / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials |
| HD-615 | 5000 kg (50KN) Max. Force / for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials |
| HD-B616 | 20KN-1000KN (Hydraulic) load range / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials |
| Want to know more details,please contact us “manager@qc-test.com“ | |
Software:
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function
Parts Picture &Fixture:
Our Services：
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
- Pre-service
–24 Hours online service for your consult.
–Help choose right model,and a series of service,person,advise.
- Middle service
–Give you best offer
–Provide discount for many sets order
–Do customer’s request:
–Choose payment term you convienent.
–Promptly production and delivery,inform you in time.
–Can provide invoice value as you like to decrease your tax.
- After sale service ：
–1 year warranty service and all life maintenance.
–Technical Egineer are avalible for oversea trainning.
–Free change for some parts
–Remote control technical consult
–Free installation DVD
–Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
