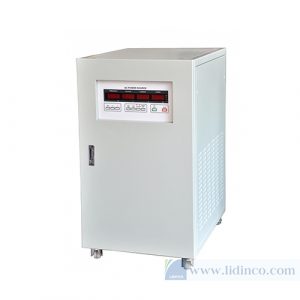

Nguồn xoay chiều một pha Twintex TFC6110, 300V-10kVA

Mã: TPC6110

Giá: Liên hệ

184 Bình Than, P. Võ Cường, Tp. Bắc Ninh

Thứ 2 - 6: 8h00 - 17h30
Thứ 7: 8h00 - 12h00

Giới thiệu Nguồn xoay chiều một pha Twintex TFC6110, 300V-10kVA

Nguồn xoay chiều một phaTwintex TFC6110 300V-10kVA từ Đài Loan, giá rẻ, chất lượng ổn định

★ Output voltage: phase voltage 0-300V

★ Output frequency: 50Hz, 60Hz, 47-63Hz, 100Hz, 200Hz, optional 400Hz

★ Fast output key for 220V/50Hz, 110V/60Hz and 120V/60Hz

★ Timing function, for output control 0~16 hours

★ High accuracy LED display for voltage, current, frequency, active power, power factor

★ Fast transient response, response time no more than 2ms for 100% load and unload

★ Multiple protections: OVP, OCP, OTP and OLP

★ Optional: RS-232/RS-485 interface for PC remote control on output frequency and voltage(TFC61 series)

★ Customized specifications and functions acceptable

Thông số kỹ thuật

Model	Output capacity	Output voltage	Output current	Weightkg	DimensionWxHxD, mm
TFC-61005	500VA	Low 0-150V High 0-300V	Low 0-4.6A High 0-2.3A	30		378x171x360
TFC-6101	1KVA	Low 0-150V High 0-300V	Low 0-9A High 0-4.5A	40		378x171x360
TFC-6102	2KVA	Low 0-150V High 0-300V	Low 0-18A High 0-9A	60		360x520x500
TFC-6103	3KVA	Low 0-150V High 0-300V	Low 0-27A High 0-13.5A	65		360x520x500
TFC-6105	5KVA	Low 0-150V High 0-300V	Low 0-45A High 0-22.5A	80		360x520x500
TFC-6106	6KVA	Low 0-150V High 0-300V	Low 0-54A High 0-27A	100		430x630x520
TFC-6110	10KVA	Low 0-150V High 0-300V	Low 0-90A High 0-45A	120		430x630x520
TFC-6115	15KVA	Low 0-150V High 0-300V	Low 0-136A High 0-68A	150		480x800x600
TFC-6120	20KVA	Low 0-150V High 0-300V	Low 0-180A High 0-90A	200		520x1000x820
TFC-6130	30KVA	Low 0-150V High 0-300V	Low 0-270A High 0-135A	270		520x1000x820

Model		61005	6101	6102	6103	6105	6106	6110
Output capacity		500VA	1KVA	2KVA	3KVA	5KVA	6KVA	10KVA
Circuit mode		IGBT/PWM
Input		1φ2W, 220V±10% 50/60Hz
Output
Phase		1 phase
Low range		0V-150V
High range		0V-300V
Frequency		Adjustable output: 47-63Hz, optional 45-400Hz Fixed output: 50Hz, 60Hz, 100Hz, 200Hz, optional 400Hz
Max. current	0V-150V	4.6A	9A	18A	27A	45A	54A	90A
	0V-300V	2.3A	4.5A	9A	13.5A	22.5A	27A	45A
Frequency regulation		≤0.1%
Load regulation		±1.5%
Harmonic distortion		±2% (resistive load)
Response time		Max. 2ms
Efficiency		≥80% (>3kW) / ≥70% (≤3kW)
Meter & Resolution
Frequency meter		4 digits LED, resolution 0.1Hz
Voltmeter		4 digits LED, resolution 0.1V
Ammeter		4 digits LED, resolution 0.001A (<4A) / 0.01A (>4A)
Power meter		4 digits LED, resolution 0.1W (<200W) / 1W (>200W)
Power factor meter		4 digits LED, resolution 0.001
Protection		Fuse switch for input and output; Fast-response circuit to detect over voltage, over current, over load, over temperature and short circuit; Output will be shut down in protection mode.
Cooling		Cooling fan
Operation environment		0℃-45℃, ≤90% RH(Non-condensing), Altitude: 1500 feet
