Giải pháp phân tích và phân tích vi mô Bảng mạch in (PCB) khối lượng lớn của Allied giúp dễ dàng chuẩn bị và ghi lại các vi mô khối lượng lớn để tuân thủ các tiêu chuẩn IPC.
Từ lắp và lắp chốt đến mài/đánh bóng cho đến hệ thống lưu trữ và đo lường tự động, Allied cung cấp một giải pháp hoàn chỉnh.
Allied’s high-volume Printed Circuit Board (PCB) microsectioning and analysis solution makes it easy to prepare and document high-volume microsections for compliance with IPC standards.
From pin insertion and mounting to grinding/polishing to an automated measurement and archiving system, Allied provides a complete solution.
Allied’s Automated Software Measurement for PCB Microsections
FEATURES

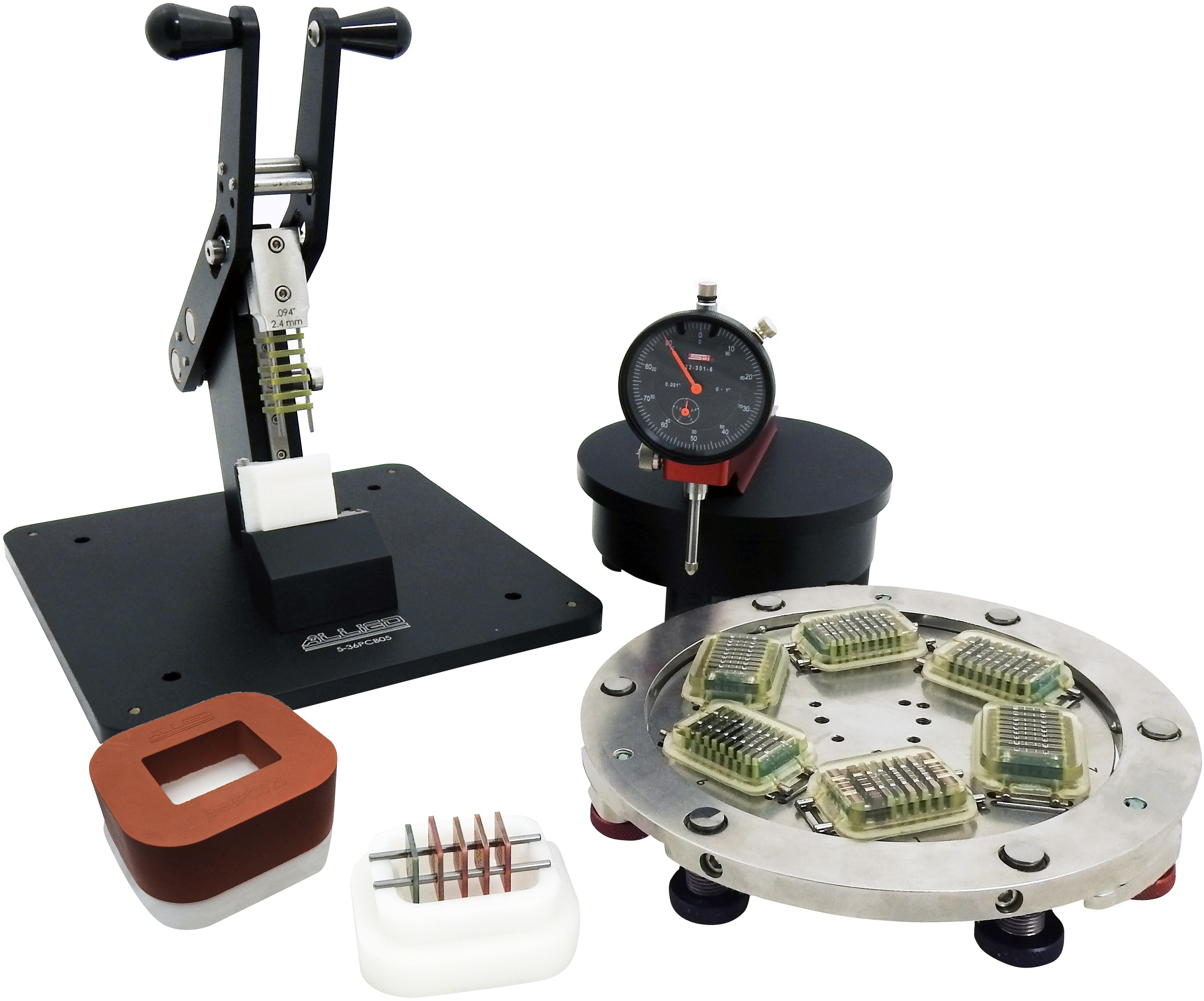

PCB Test Coupon Microsectioning Preparation Kit
| High-volume preparation of up to fifty-four (54) multi-layer coupons | For coupons with a 2 mm or 0.094″ Ø hole (uses 50 mm L pin) | |
| Complies with IPC TM-650, No. 2.1.1, Rev. F, Method B | Universal design adapts to non-Allied Machines with Drive Adapter | |

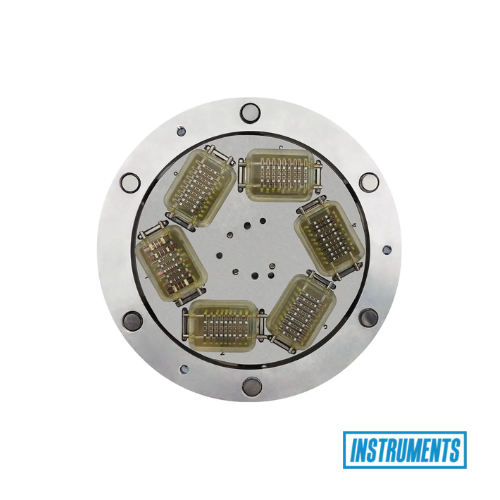

| Includes Pin Insertion Press for PCB/Coupon Preparation System | Includes PCB Sample Holder with Adjustable Carbide Stops, 6-position | |
| Includes Carbide Stop Height Gauge Assembly for setting carbide stop height of PCB Sample Holder | Use with MetPrep 4™ PCB Grinder/Polisher with PH-4c™ Power Head |
MetPrep 4 PCB Grinder/Polisher with PH-4c Power Head (Power Head Specs Below)
| Designed for use with Allied’s PCB Microsectioning Kit | Soft-start/stop force control | |
| Unique tilt-up feature for easy access to platen and holder | Simple push-button attachment and removal of sample holders | |
| Quick-lock system allows sample holder positioning across entire platen surface | Safety sensor that stops operation if power head is tilted up | |
| Variable rotation speed: 0-150 RPM (10 RPM increments) | 0.25 HP (190 W) motor with durable reduction gearbox for constant high torque output | |
| Central force functionality | Two (2) year warranty | |
| Comp and contra rotation | Designed & manufactured by Allied in the USA |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-6500-PCB | METPREP 4™ PCB GRINDER/POLISHER with PH-4c™ POWER HEAD for 10” or 12″ PLATENS, 115 V 50/60 Hz 1 Phase Includes: Splash Ring and Platen Cover | ||
| 5-6500-230-PCB | METPREP 4™ PCB GRINDER/POLISHER with PH-4c™ POWER HEAD for 10” or 12″ PLATENS, 200-240 V AC 50/60 Hz 1 Phase Includes: Splash Ring and Platen Cover |
Product Accessories
Note: Mold cup components (upper/lower), pins, mounting resin and other consumables sold separately
| Item # | Description | Qty | |
|---|---|---|---|
| 5-36PCBKIT 05 | PCB TEST COUPON MICROSECTIONING PREPARATION KIT Includes: Pin Insertion Press, Fixture Assembly and Carbide Stop Height Gauge Assembly |
