GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 2525*1930*2680MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed) Gross Weight: 2900kg
HS Code: 130830001
STANDARD FEATURES:
| Measuring Range | X:1000 | Y:1200 | Z:800 |
| Max. Workpiece Weight | 1500KG | ||
| MPEe(µm) | 3.2 + L/250 | ||
| MPEp | 3.3 µm | ||
| Scale resolution | 0.5µm | ||
| Maximum Movement speed (mm/s) | 430 | ||
| Net Weight | 2800kg | ||
| Dimension(L*W*H) mm | 2495*1902*3093 | ||
LIST OF SPARE PARTS:
| Name | Configuration | Specifications and Instructions | Quantity | |||

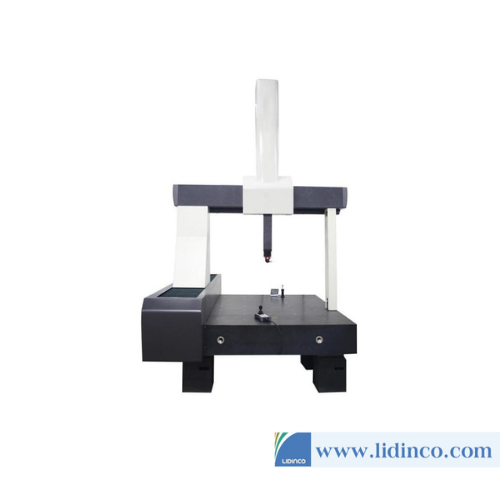

| Mainframe system | Mainframe | FLY12108 | 1 Set | |||
|
Control System |
NOVA Control System |
Control Cabinet | 1 Piece | |||
| Operating Handle | 1 Piece | |||||
|
Control cabinet measuring software system |
Visual DMIS CNC CAD + Measuring Software |
Visual DMIS CNC CAD+ Measuring Software CD(Windows Operation
System） |
1 Piece |
|||
|
Software Lock |
Visual DMIS CNC CAD+ measuring
software Lock |
1 Piece |
||||
| Measuring Software Operation Manual + Visual DMIS CNC CAD | 1 Piece | |||||
|
Computer System |
Mainframe |
Intel Dicaryon 3.0GHZ,Internal Storage 2 GB， Hard Disk 500 GB，16 DVD-ROM CD-ROM，
Display Card 1G,19 widescreen LCD screens（Not under this configuration） |
1 Set |
|||
| Operating System | WINDOWS | |||||
| 1Set | ||||||
| Printer | HP ink-jet printer | 1 Set | ||||
| Chair and Table | Special Chair and Table for Computer | 1 Set | ||||
|
Measuring Head & Measuring Needle System |
Measuring head block | MH20i | 1 Piece | |||
| The standard load module | TP20 | 1 Piece | ||||
|
Measuring Needle group |
RENISHAW The 3rd Measuring
Needle Component |
1 Set |
||||
| Calibration Ball | Ф20 | 1 Piece | ||||
| universal ball joint | 1 Piece | |||||
Probe System
| RENISHAW MH20i (Manual double probe) |
|
1 Piece |
| Dividing Spindle A：0°～90°Step itch：15° | ||
| Dividing Spindle B：±180° Step itch：15° | ||
| Spatial Measurement Direction : 168 个 | ||
| Positioning Repeatability：1.5μm | ||
| RENISHAW The Standard Load Module | 1 Piece | |
| RENISHAW The 3rd Measuring Needle Component | ||
| Testing Needle -5000-7804 PS27R (φ2.5×20/14) | 4 Piece | |
| Testing Needle -5000-3604 PS1R (φ3.0×10/7.5) | 1 Piece | |
| Testing Needle -5000-4161 PS17R (φ4.0×20/20) | 1 Piece | |
| Testing Needle Extension Rod A-5004-7586（20mm） | 1 Piece | |
| Testing Needle Extension Rod -5004-7611（40mm） | 1 Piece | |
| Central of Testing Needle A-5000-3627 SC2 | 1 Piece | |
| Testing Needle Tools A-5004-7582 | 1 Piece | |
| Calibration Ball (Ceramics) φ20mm | 1 Piece | |
| Universal Ball Joint | 1 Piece | |
