Specifications

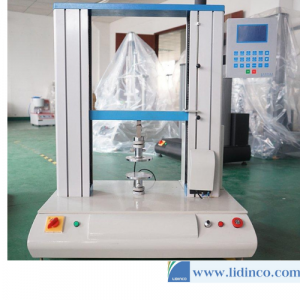

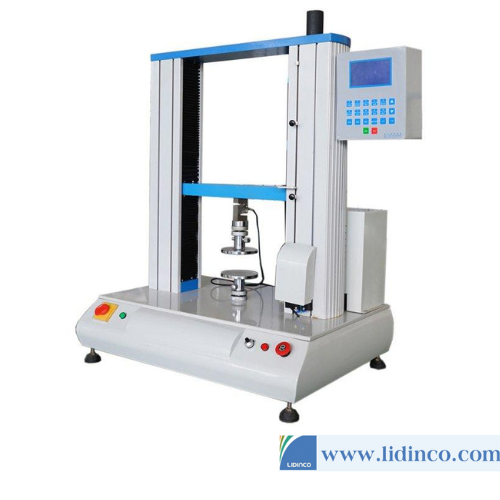

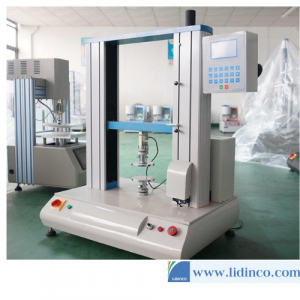

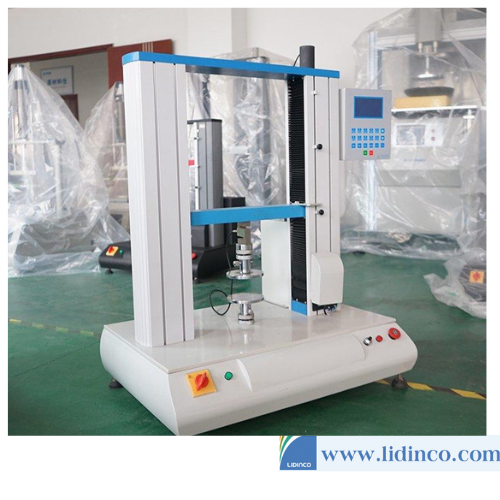

Ring Crush Tester And Edge Compressive Testing Machine
1.2 years warranty
2.multi-functional equipment
3.paper ,corrugated box
4.with stock
Introduction
Ring Crush Tester And Edge Compressive Testing Machine can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
The Ring Crush Edge Compressive Testing Machines of main technical parameters
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/250,000 |
| Precision | < 0.25% |
| Operation Mode | Computer |
| Display Mode | LCD |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 500 mm |
| Platen Parallelism | ± 0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 790×510×1060 mm |
| Weight | Approx. 51 kg |
| Power | AC220V, 1.5A |
