1. Usage
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
2. Techinical Refernce

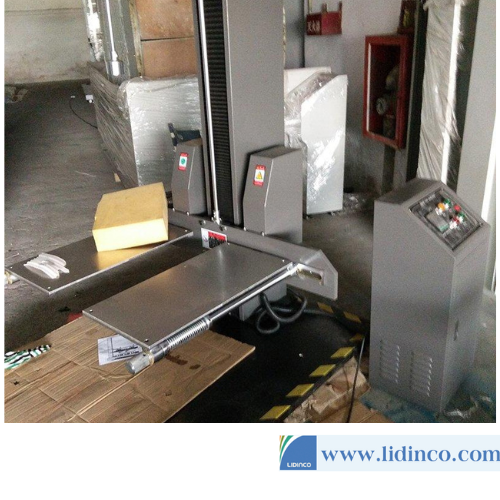

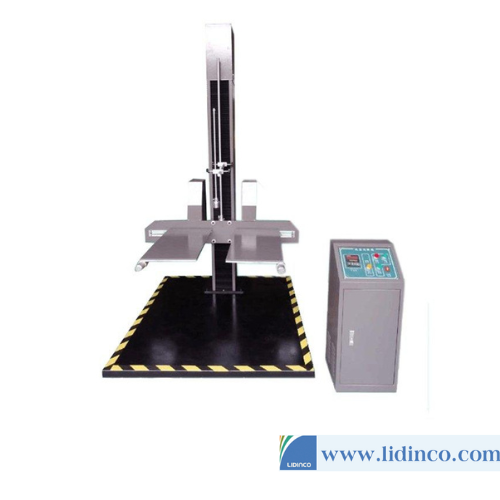

| Model | HD-520B Digital Wings Drop Tester |
| Display Method | Digital height indicator (optional) |
| Drop Height | 400~1300mm |
| Single-wing Area (W×L) | 350×760mm |
| Drop Panel Area (W×L) | 1200×1400mm |
| Specimen Max. Size (L×W×H) | 1000×1000×800mm |
| Specimen Max. Weight | 640kg |
| Outside Dimension (L×W×H) | 1400×1200×1940mm |
| Control Box Size (L×W×H) | 350×350×1100mm |
| Weight | 400kg |
| Power | 1ø, AC 220V/50Hz |
| Transmit Approach | Electric Transmission |
| Horsepower | 1/2HP |
| Design Criteria | ISO 2248, JIS Z0202-87, GB/T4857.5-92 |
Specifications
Drop Testing Machine
1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sales service
