Máy mài và đánh bóng MetPrep 4x™ MỚI, với dòng đầu nguồn PH™, là hệ thống mạnh mẽ để vận hành bán tự động, lý tưởng cho các yêu cầu chuẩn bị mẫu với khối lượng thấp đến cao. Hai sự kết hợp cung cấp các giải pháp lý tưởng phù hợp với mọi phòng thí nghiệm, ứng dụng hoặc vật liệu.
Hệ thống dựa trên bộ vi xử lý cho phép người vận hành sử dụng Chế độ nhập thủ công để nhập các tham số trong suốt quy trình hoặc Chế độ các bước và trình tự được lập trình sẵn do người dùng xác định để chọn các bước theo trình tự khi quy trình tiến triển.
Đầu nguồn PH-4™/PH-6™ cung cấp tính linh hoạt tối đa cho việc chuẩn bị mẫu bán tự động với khối lượng thấp đến cao, sử dụng chế độ lực lấy mẫu tập trung hoặc riêng lẻ. Hệ thống điện-khí nén cung cấp lực lấy mẫu được kiểm soát và cho phép chuẩn bị đồng thời tối đa mười hai (12) mẫu, tùy thuộc vào đầu nguồn, đường kính ngàm và kích thước giá đỡ. Thiết kế nghiêng độc đáo cho phép tiếp cận dễ dàng, không bị cản trở với giá đỡ mẫu và trục lăn, đồng thời loại bỏ nhu cầu định vị lại đầu trong quá trình chuẩn bị.
Có thể sử dụng đĩa tiêu chuẩn hoặc đĩa từ với bất kỳ đĩa hệ thống từ tính hoặc đĩa trơn/có mặt sau dính nào.
Tính năng nổi bật
MetPrep 4x
| Store and recall of up to ten (10) user-programmable sequences with up to ten (10) individual steps each, including settings for platen speed, force mode, comp/contra rotation (sample holder/platen), cycle time, fluid selection, sample force (lbf or N), sample rotation speed, water rinse, soft start and force reduction | 7″ (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbf/N) | |
| Powerful, quiet 2.0 HP (1470 W) Brushless DC motor that provides constant high torque output throughout the speed range | Molded one-piece corrosion resistant cover | |
| Electronic coolant control with adjustable flow control valve | Quick-change platen design, anodized to resist wear and corrosion | |
| Retractable coolant nozzle that allows quick and easy sample/bowl cleaning | Constructed with components precision machined from solid billet aluminum and stainless steel | |

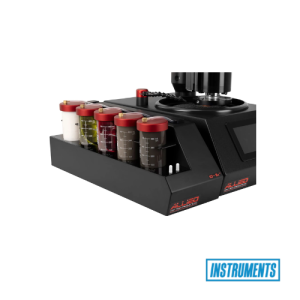

| Built-in programming and seamless integration of optional ID-5x™ fluid dispenser for automatic operation | Variable platen and jog speed: 40 – 600 RPM (10 RPM increments) | |
| Low profile design | Overflow diversion to protect internal components | |
| Emergency shut-off switch | Designed & manufactured by Allied in the USA | |
| Two (2) year warranty |
PH-4 & PH-6 Power Heads
| Central force sample preparation of up to twelve (12) samples | Soft-start/stop force control | |
| Individual force sample preparation of up to six (6) samples | Simple push-button attachment and removal of sample holders | |

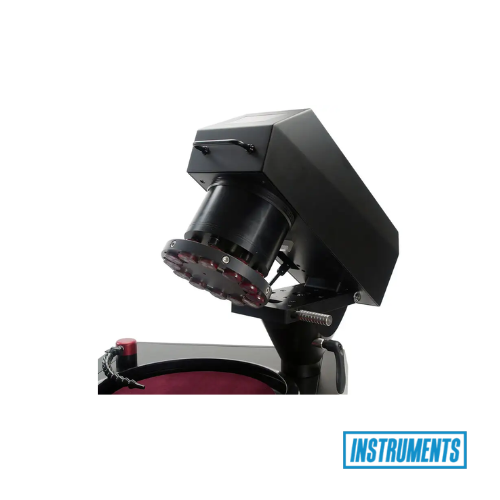

| Unique tilt-up feature for easy access to platen and holder | Safety sensor that stops operation if power head is tilted up | |
| Quick-lock system to allow sample holder positioning across platen radius | Sample holder release button that faces the operator for easy access upon cycle completion | |
| Variable sample rotation speed: 0 – 150 RPM (10 RPM increments) with comp/contra direction control | 0.33 HP (246 W) motor with durable reduction gearbox provides constant high torque output | |
| Designed & manufactured by Allied in the USA | Optional Protective Shield available for added safety |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-6550 | METPREP 4x™ GRINDER/POLISHER with PH-4™ POWER HEAD for 10” or 12″ PLATENS, 100-240 V Includes: Splash Ring and Platen Cover | ||
| 5-6650 | METPREP 4x™ GRINDER/POLISHER with PH-6™ POWER HEAD for 10” or 12″ PLATENS, 100-240 V Includes: Splash Ring and Platen Cover |
Product Accessories
NOTE: Aluminum/Magnetic Platens, Sample Loading Fixtures & Holders are SOLD SEPARATELY. Please choose from the list of accessories below to ensure a complete system is configured for quotation.
| Item # | Description | Qty | |
|---|---|---|---|
| 5-3301 |  Click to Enlarge » |
Sample Holder, Blank with Heating Stage, 140 mm | |
| 5-3330 |  Click to Enlarge » |
Sample Holder, (6) 25 mm – 1.25″ Samples, Teardrop Central Force for use with 10″ (254 mm) or 12″ (305 mm) platens | |
| 5-3340 |  Click to Enlarge » |
Sample Holder, (5) 25 mm – 40 mm Samples, Teardrop Central Force for use with 10″ (254 mm) or 12″ (305 mm) platens | |
| 5-3345 |  Click to Enlarge » |
Sample Holder, (3) 25 mm – 40 mm Samples, Teardrop Central Force for use with 10″ (254 mm) or 12″ (305 mm) platens | |
| 5-3361 |  Click to Enlarge » |
Sample Holder, (6) 25 mm – 1.25″ Samples, Dual-Cavity Central Force for use with 10″ (254 mm) or 12″ (305 mm) platens | |
| 5-3380 |  Click to Enlarge » |
Sample Loading Fixture for 5-33XX Series Holders | |
| 5-3401 |  Click to Enlarge » |
Sample Holder, Blank with Heating Stage, 160 mm | |
| 5-3435 |  Click to Enlarge » |
Sample Holder, (6) 25 mm – 1.5″ Samples, Teardrop Central Force for use with 10″ (254 mm) platens | |
| 5-3440 |  Click to Enlarge » |
Sample Holder, (3) 25 mm – 2″ Samples, Teardrop Central Force for use with 10″ (254 mm) platens | |
| 5-3445 |  Click to Enlarge » |
Sample Holder, (9) 25 mm – 1.25″ Samples, Teardrop Central Force for use with 10″ (254 mm) platens | |
| 5-3460 |  Click to Enlarge » |
Sample Holder, (8) 25 mm – 1.25″ Samples, Dual-Cavity Central Force for use with 10″ (254 mm) platens | |
| 5-3461 |  Click to Enlarge » |
Sample Holder, (6) 30 mm – 40 mm Samples, Dual-Cavity Central Force for use with 10″ (254 mm) platens | |
| 5-3465 |  Click to Enlarge » |
Sample Holder, (3) Position Clamp Style 1.25″ x 2″ (32 x 50 mm) Pocket for Central Force for use with 10″ (254 mm) platens | |
| 5-3490 |  Click to Enlarge » |
Sample Holder, (5) 1.2″ x 2.1″ (30 x 53 mm) Rectangles Central Force for use with 10″ (254 mm) platens | |
| 5-3491 |  Click to Enlarge » |
Sample Holder, (3) 1.6″ x 2.7″ (40 x 68 mm) Rectangles Central Force for use with 10″ (254 mm) platens | |
| 5-3494 |  Click to Enlarge » |
Sample Holder, (3) 2″ x 2″ (51 x 51 mm) Squares Central Force for use with 10″ (254 mm) platens | |
| 5-3480 |  Click to Enlarge » |
Sample Loading Fixture for 5-34XX Series Holders | |
| 5-3601 |  Click to Enlarge » |
Sample Holder, Blank with Heating Stage, 200 mm | |
| 5-3605 |  Click to Enlarge » |
Sample Holder, (12) 25 mm – 1.25″ Samples, Dual-Cavity Central Force for use with 12″ (305 mm) platens | |
| 5-3635 |  Click to Enlarge » |
Sample Holder, (6) 25 mm – 2″ Samples, Teardrop Central Force for use with 12″ (305 mm) platens | |
| 5-3650 |  Click to Enlarge » |
Sample Holder, (3) 2.1″ x 3.7″ (53 mm x 94 mm) Rectangles Central Force for use with 12″ (305 mm) platens | |
| 5-3661 |  Click to Enlarge » |
Sample Holder, (8) 30 mm – 40 mm Samples, Dual-Cavity Central Force for use with 12″ (305 mm) platens | |
| 5-3662 |  Click to Enlarge » |
Sample Holder, (6) 1.5″ – 2″ Samples, Dual-Cavity Central Force for use with 12″ (305 mm) platens | |
| 5-3680 |  Click to Enlarge » |
Sample Loading Fixture for 5-36XX Series Holders | |
| 5-3735 |  Click to Enlarge » |
Sample Holder, (4) 1″ (25 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3740 | Click to Enlarge » |
Sample Holder, (4) 30 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3745 |  Click to Enlarge » |
Sample Holder, (4) 1.25″ (32 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3750 |  Click to Enlarge » |
Sample Holder, (4) 1.5″ (38 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3755 |  Click to Enlarge » |
Sample Holder, (4) 40 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3760 |  Click to Enlarge » |
Sample Holder, (4) 50 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3765 |  Click to Enlarge » |
Sample Holder, (4) 2″ (51 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3935 |  Click to Enlarge » |
Sample Holder, (6) 1″ (25 mm) Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3940 |  Click to Enlarge » |
Sample Holder, (6) 30 mm Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3945 |  Click to Enlarge » |
Sample Holder, (6) 1.25″ (32 mm) Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3950 |  Click to Enlarge » |
Sample Holder, (6) 1.5″ (38 mm) Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3955 |  Click to Enlarge » |
Sample Holder, (6) 40 mm Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3960 |  Click to Enlarge » |
Sample Holder, (6) 50 mm Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3965 |  Click to Enlarge » |
Sample Holder, (6) 2″ (51 mm) Mounts, Individual Force for use with PH-6™ Power Head | |
| 5-3700 |  Click to Enlarge » |
Sample Holder, (4) Variable Diameter Mounts from 1” to 40 mm using corresponding Spacer Rings, Individual Force for use with PH-4™ Power Head | |
| 5-3900 |  Click to Enlarge » |

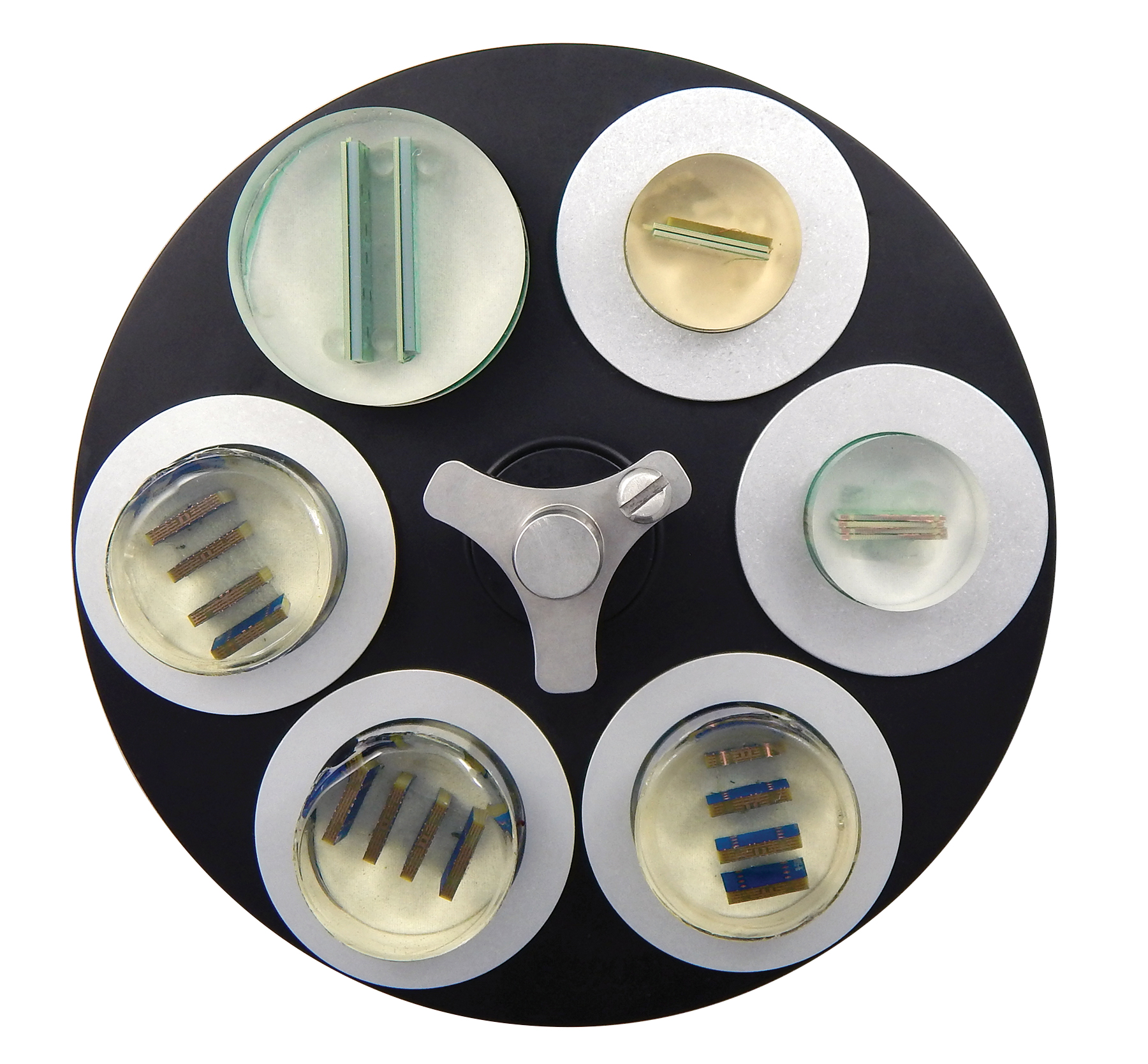

Sample Holder, (6) Variable Diameter Mounts from 1” to 40 mm using corresponding Spacer Rings, Individual Force for use with PH-6™ Power Head | |
| 5-3X35-50 |  Click to Enlarge » |
Individual Force Spacer Ring, for 1″/25 mm Mount for use with 5-3700 or 5-3900 Sample Holder | |
| 5-3X40-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 30 mm Mount for use with 5-3700 or 5-3900 Sample Holder | |
| 5-3X45-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.25″ Mount for use with 5-3700 or 5-3900 Sample Holder | |
| 5-3X50-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.5″ Mount for use with 5-3700 or 5-3900 Sample Holder | |
| 5-3X55-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 40 mm Mount for use with 5-3700 or 5-3900 Sample Holder | |
| 5-6010 |  Click to Enlarge » |
Standard Platen, 10″ (254 mm) | |
| 5-6010M |  Click to Enlarge » |
Magnetic Platen, 10″ (254 mm) | |
| 5-6005 | Click to Enlarge » |
Standard Platen, 12″ (305 mm) | |
| 5-6005M | Click to Enlarge » |
Magnetic Platen, 12″ (305 mm) | |
| 90-208302 |  Click to Enlarge » |
Magnetic Base, 10″ (254 mm), with Adhesive Backing | |
| 90-208305 | Click to Enlarge » |
Magnetic Base, 12″ (305 mm), with Adhesive Backing | |
| 5-8100 |  Click to Enlarge » |
Platen Storage Cabinet for Platens, Discs or Cloths up to 12″ (300 mm) Diameter | |
| 5-8105 |  Click to Enlarge » |
Aluminum Tray/Shelf | |
| 5-3X346 |  Click to Enlarge » |

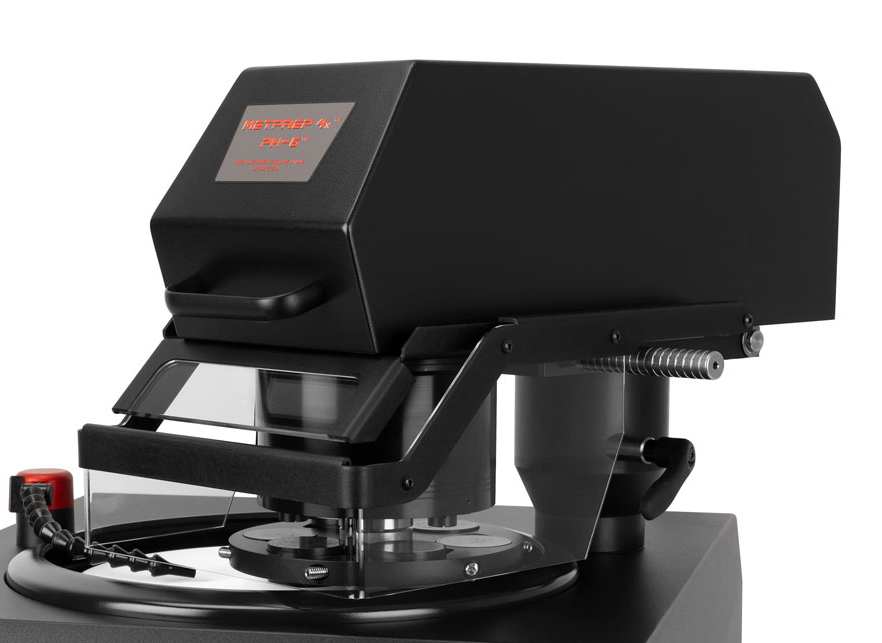

Splash shield for PH-3, PH-4 & PH-6 powerheads |
