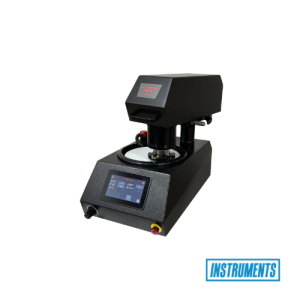

Máy mài/đánh bóng E-Prep 4x™ MỚI với Đầu nguồn PH-4i™
Máy mài và đánh bóng E-Prep 4x™ mới, với đầu nguồn PH-4i™, là một hệ thống đơn giản nhưng mạnh mẽ để vận hành bán tự động, lý tưởng cho các yêu cầu chuẩn bị mẫu với khối lượng thấp đến cao. Giao diện hướng dẫn sử dụng và bàn di chuột thân thiện với người dùng giúp bạn dễ dàng điều chỉnh cài đặt và vận hành. Các điều khiển cơ bản cho phép thay đổi nhanh các thông số như lực mẫu, thời gian chu kỳ, tốc độ trục lăn và tốc độ mẫu.
Có thể sử dụng tấm lót tiêu chuẩn hoặc từ tính 8”/203 mm hoặc 10”/254 mm với bất kỳ đĩa hệ thống từ tính hoặc đĩa trơn/có mặt sau dính nào.
Đĩa tiêu chuẩn/từ tính và giá đỡ mẫu được bán riêng.
Tính năng nổi bật
E-Prep 4x
| Variable platen speed: 50 – 500 RPM (10 RPM Increments) | Constructed with components precision machined from solid billet aluminum and stainless steel | |
| Variable cycle time: 0:05-10:00 minutes (1 second increments) | Molded one-piece corrosion resistant enclosure with overflow diversion to protect internal components | |
| Powerful, quiet 0.6 HP (470 W) Brushless DC motor that provides constant high torque output throughout the speed range | Quick-change platen design, anodized to resist wear and corrosion | |
| Electronic coolant control with adjustable flow control valve | 7″ (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbF/N) | |
| Retractable coolant nozzle allows quick and easy sample/bowl cleaning | Compatible with #5-37XX series sample holders | |
| Emergency shut-off switch | Compatible with #100-40020 Recirculation Filtration System | |
| Two (2) year warranty | Designed & manufactured by Allied in the USA |

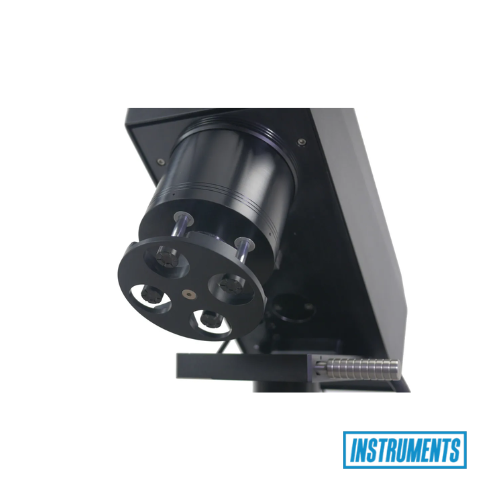

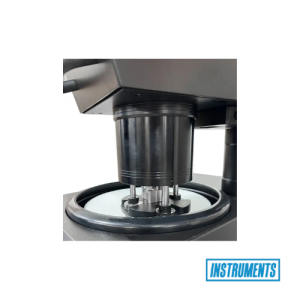

PH-4i Power Head
| Individual force sample preparation of up to 4 mounts | Variable sample rotation speeds: 0-150 RPM (10 RPM Increments) with complementary rotation | |

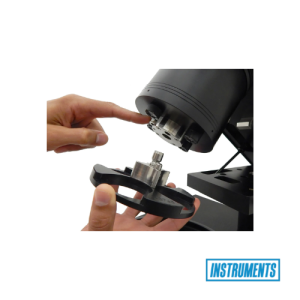

| Unique tilt-up feature for easy access to platen and holder | Simple push-button attachment and removal of sample holders | |
| Quick-lock system to allow sample holder positioning across platen radius | Complementary rotation | |
| Variable sample force: 0-12 lb. in 1 lb. increments (0-55 N in 1 N increments) | 0.33 HP (250 W) power head motor with durable reduction gearbox for constant high torque output | |
| Two (2) year warranty | Designed & manufactured by Allied in the USA |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-2450 | E-Prep 4x™ Grinder/Polisher with PH-4i™ Power Head for 8″ or 10” Platens, 100-240 V 50/60 Hz 1 Phase |
Product Accessories
NOTE: Aluminum/Magnetic Platens, Sample Loading Fixtures & Holders are SOLD SEPARATELY. Please choose accessories from the list below to ensure a complete system is configured for quotation.
| Item # | Description | Qty | |
|---|---|---|---|
| 5-3735 |  Click to Enlarge » |
Sample Holder, (4) 1″ (25 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3740 |  Click to Enlarge » |
Sample Holder, (4) 30 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3745 |  Click to Enlarge » |
Sample Holder, (4) 1¼” (32 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3750 |  Click to Enlarge » |
Sample Holder, (4) 1½” (38 mm) Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3755 |  Click to Enlarge » |
Sample Holder, (4) 40 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3760 |  Click to Enlarge » |
Sample Holder, (4) 50 mm Mounts, Individual Force for use with PH-4™ Power Head | |
| 5-3765 |  Click to Enlarge » |
Sample Holder, (4) 2″ (51 mm) Mounts, Individual Force for use with PH-4™ Power Head | |

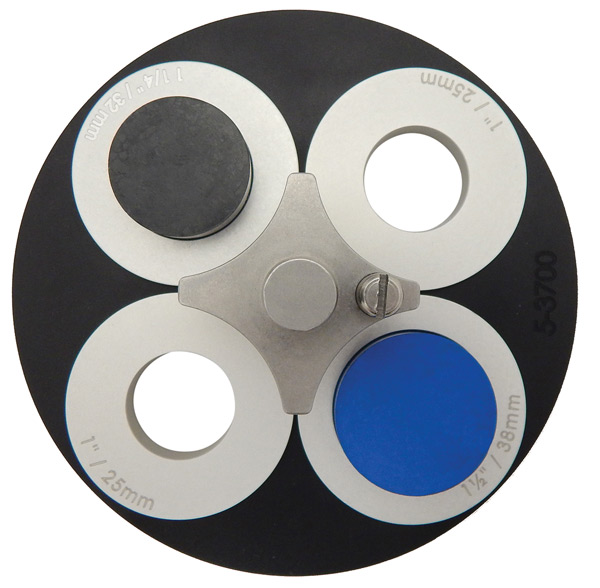

| 5-3700 |  Click to Enlarge » |
Sample Holder, (4) Variable Diameter Mounts from 1” to 40 mm using corresponding Spacer Rings, Individual Force for use with PH-4™ Power Head | |
| 5-3X35-50 |  Click to Enlarge » |
Individual Force Spacer Ring, for 1″/25 mm Mount for use with 5-3700 Sample Holder | |
| 5-3X40-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 30 mm Mount for use with 5-3700 Sample Holder | |
| 5-3X45-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.25″ Mount for use with 5-3700 Sample Holder | |
| 5-3X50-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.5″ mm Mount for use with 5-3700 Sample Holder | |
| 5-3X55-50 | Click to Enlarge » |
Individual Force Spacer Ring, for 40 mm Mount for use with 5-3700 Sample Holder |
